LCS JET INSTALLATION GUIDE

I want to thank you for your support and choosing to ride with Lift Foils! Every day we strive to continue leading the industry with every product we craft to ensure you have the best foiling experience possible. We appreciate you being part of the Lift Family.

Nick Leason, Founder and CEO

INSTALLATION

STEP 1

The Lift Connect System (LCS) Jet is quick and easy to assemble:

Before you begin, it is critical to ensure all eFoil equipment is turned off and the battery is disconnected before working with or around the motor or propellers.

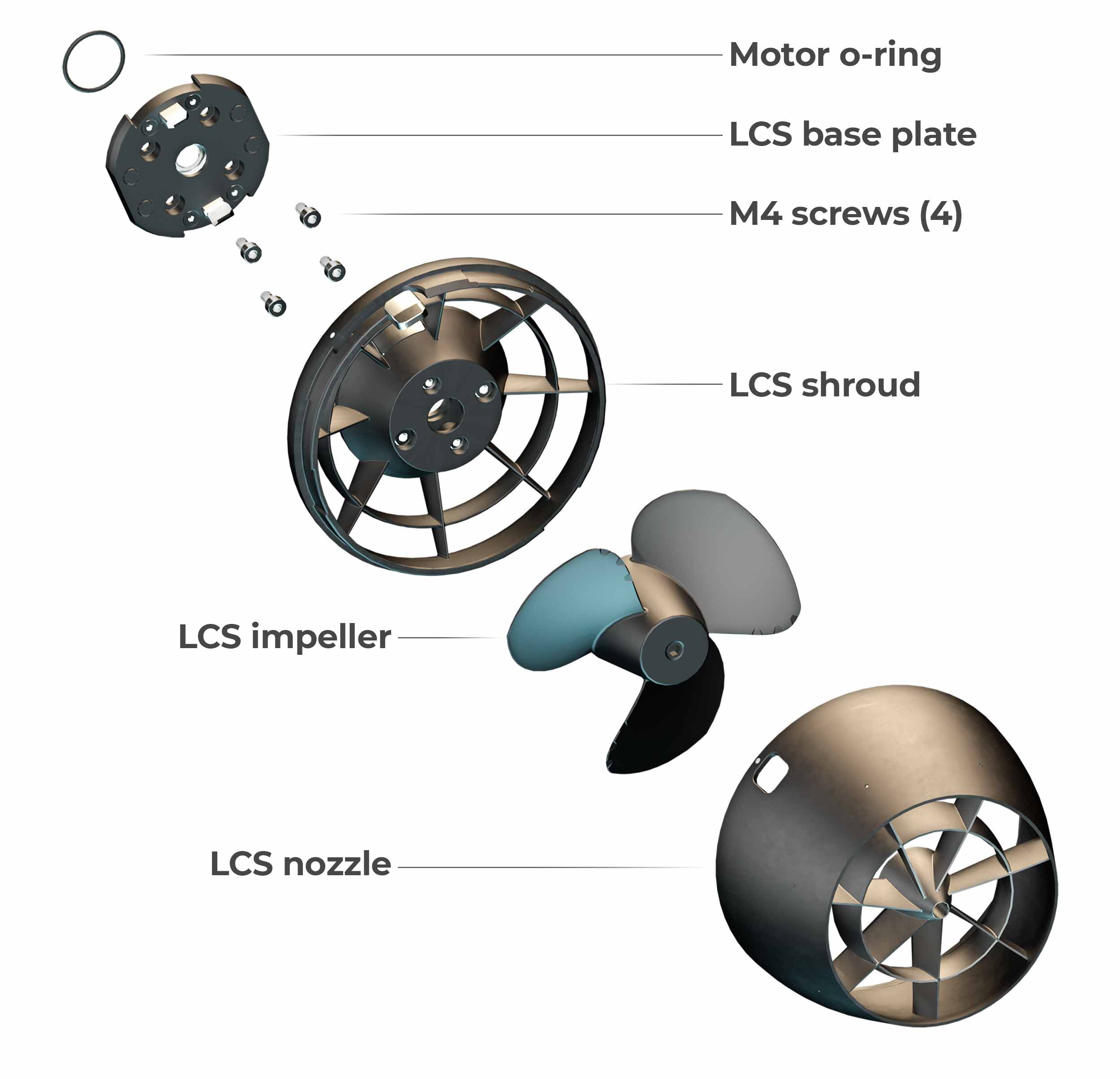

Check to make sure you have all components ready for your LCS Jet installation:

STEP 2

Before beginning the LCS jet installation, remove any existing propulsion components, such as a propeller, jet, or shroud. The base of the motor should be clear and visible, as shown below.

Please note that your previous hardware setup may have included an o-ring (shown below). You can re-use your existing o-ring, or install the included o-ring for your LCS Jet configuration.

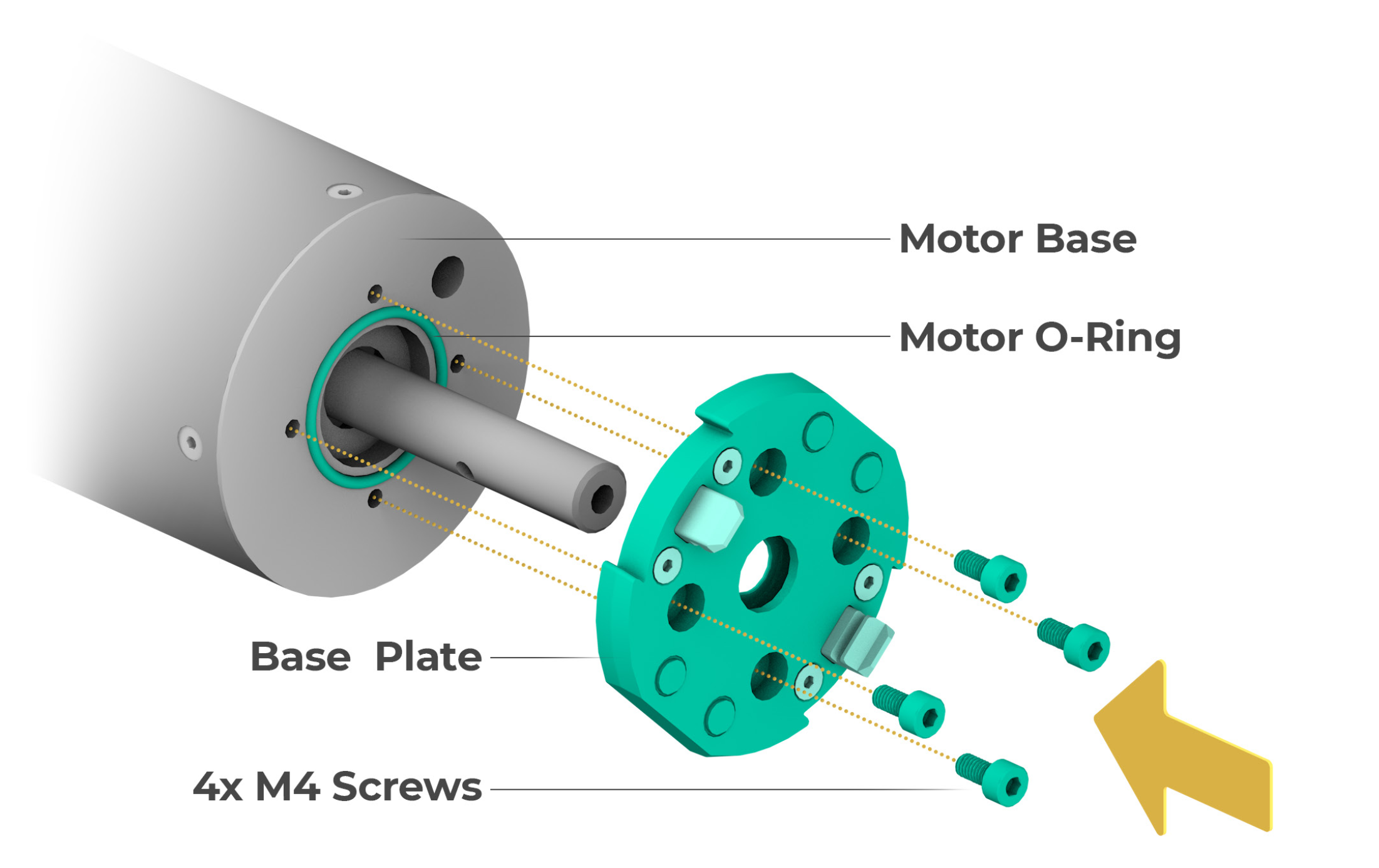

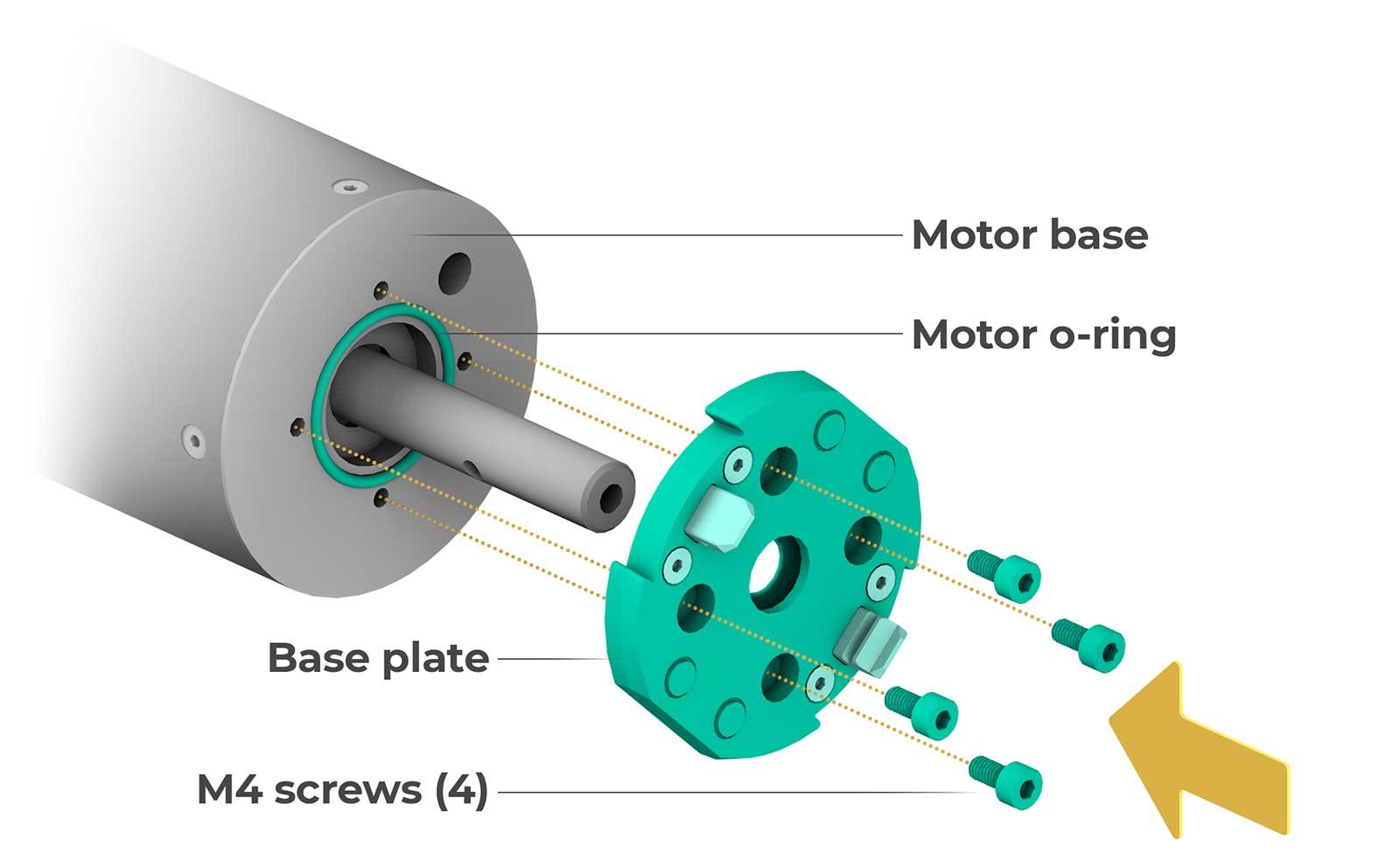

Next, use the four M4 screws to attach the LCS base plate to the base of your motor. Ensure the o-ring is tightly in place before attaching the LCS base plate. Do not overtighten the M4 screws.

STEP 3

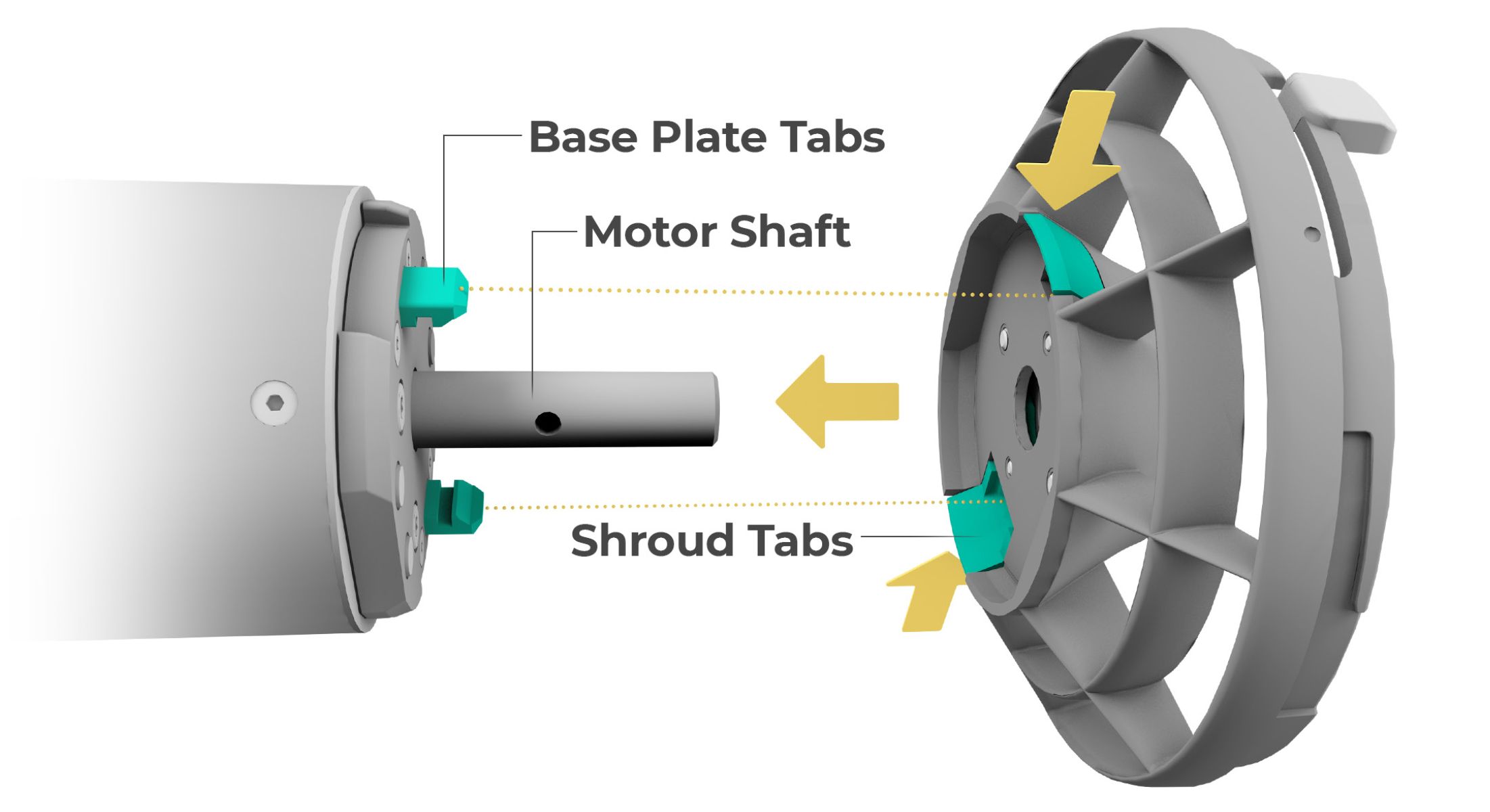

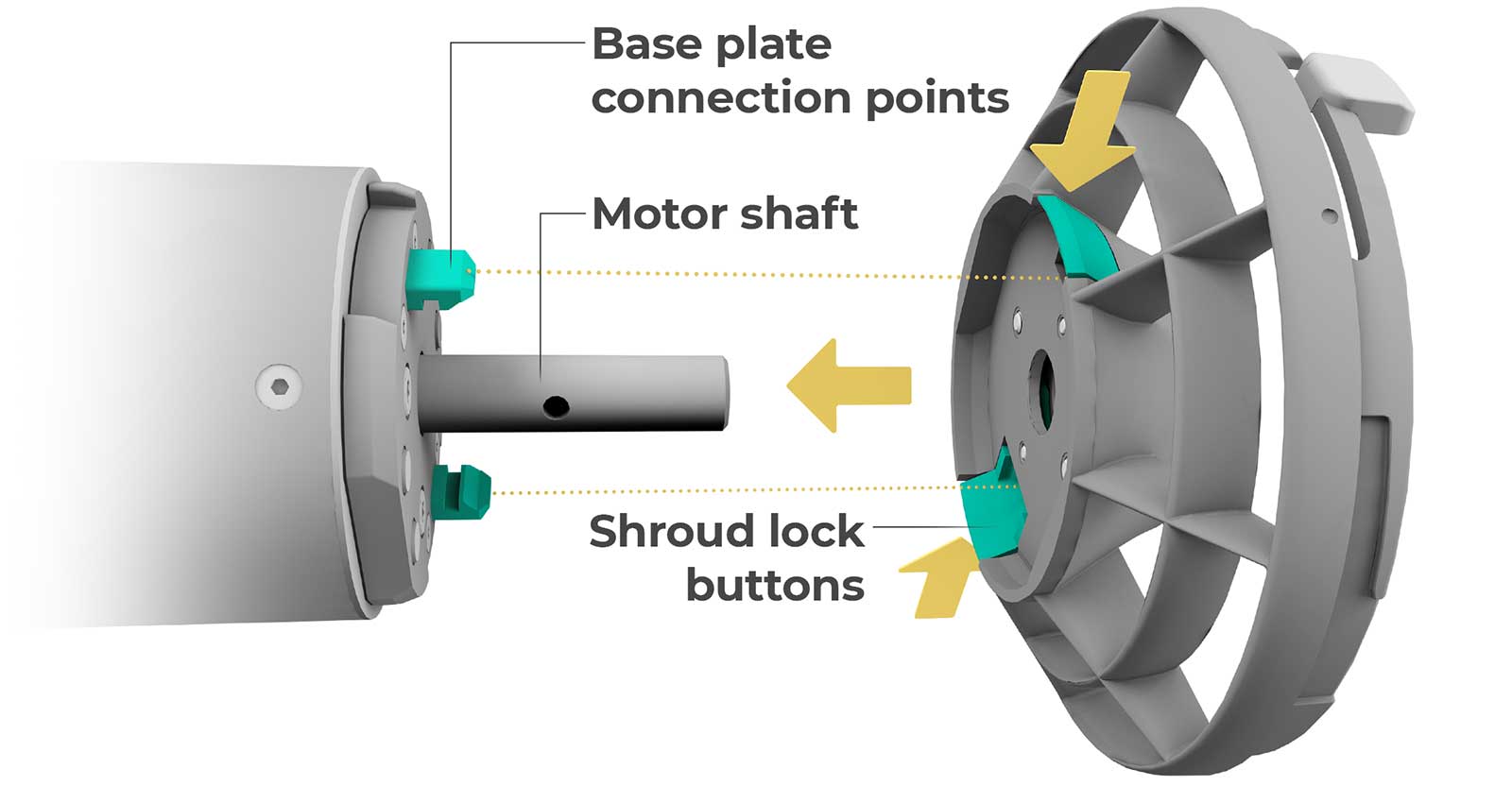

Attach the LCS shroud by reaching through the vents and depressing the shroud tabs. Slide the center hole of the shroud onto the motor shaft. Line the tabs up with the LCS base plate tabs. Press firmly on the center hub of the shroud until you hear it click into place, creating a firm connection. Check to ensure the tabs have returned to their original position once connected.

STEP 4

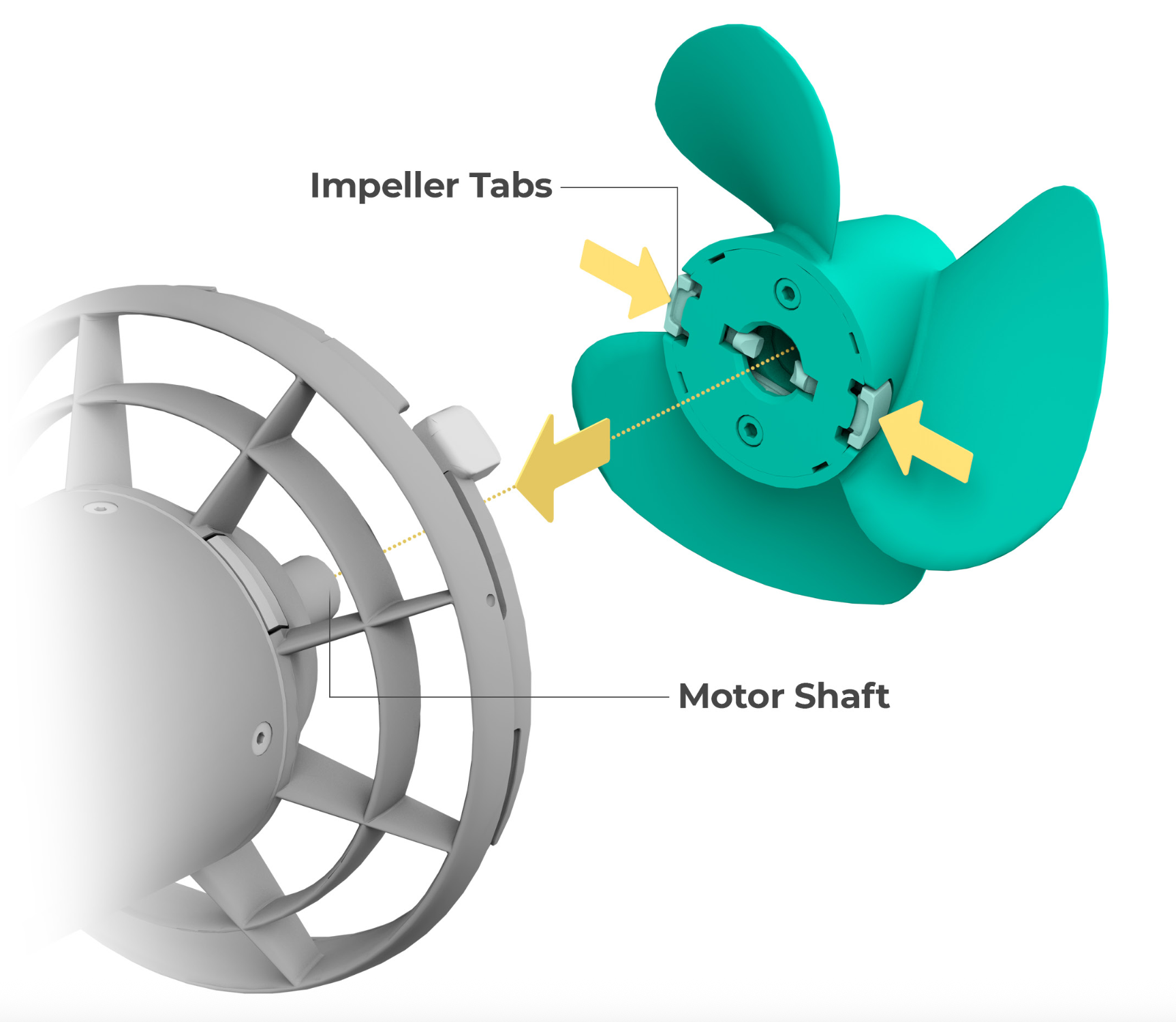

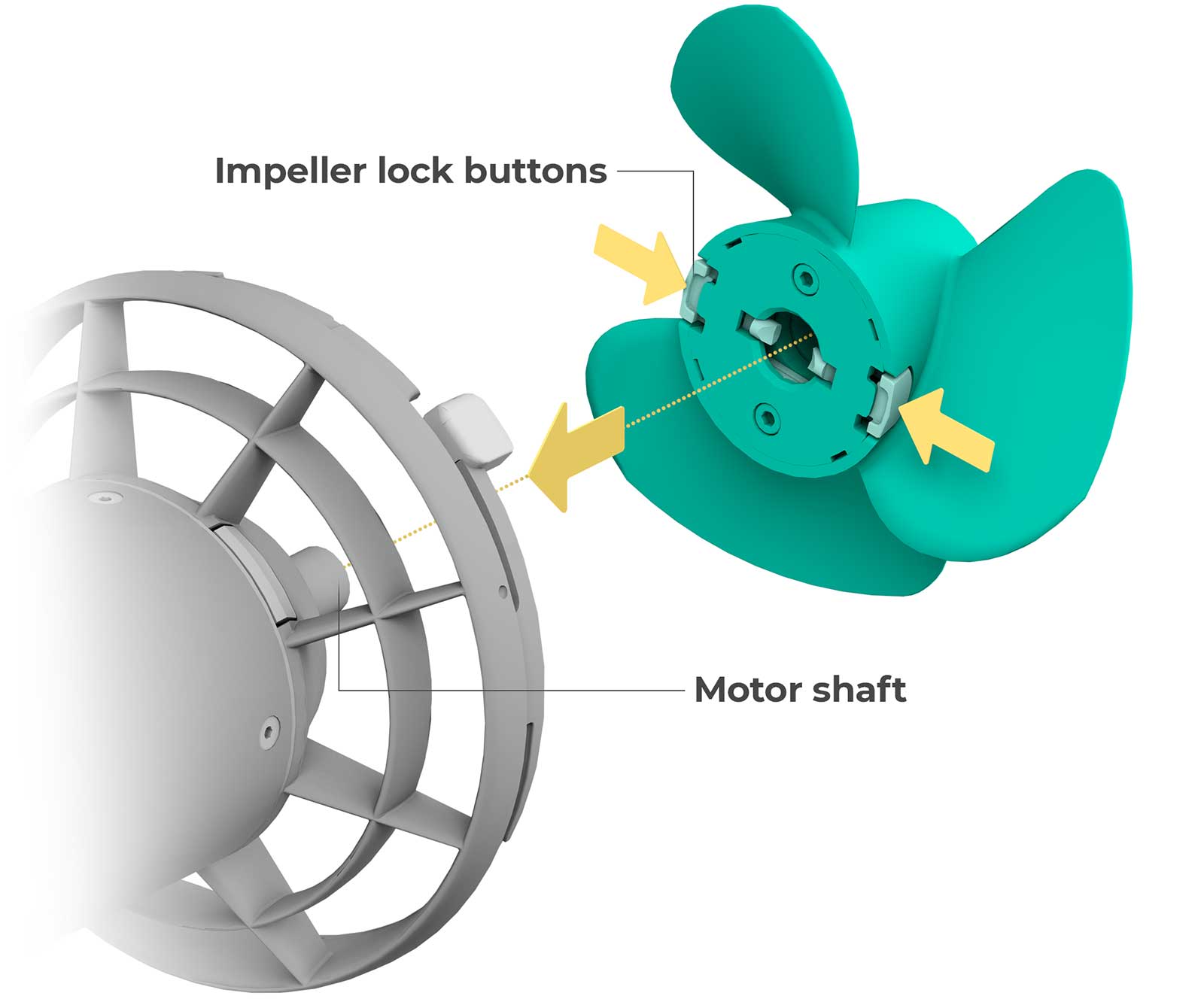

Attach the LCS Impeller by depressing the impeller tabs while pushing the impeller onto the motor shaft. You may need to rotate the impeller once it is on the motor shaft to align the tabs with the connection point. Once properly aligned, you should hear the impeller click into place, creating a firm connection. Check to ensure the tabs have returned to their original position once connected.

STEP 5

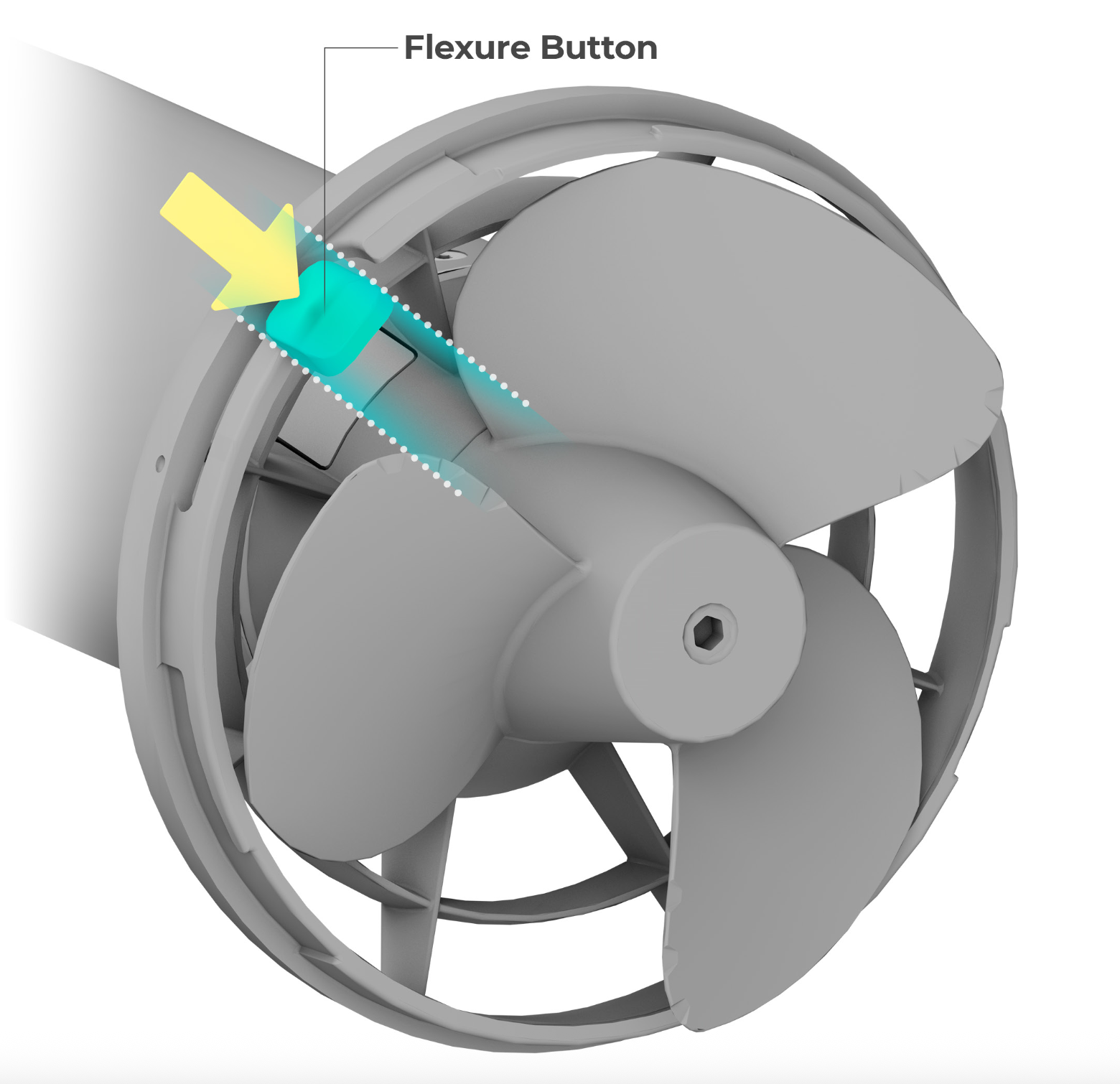

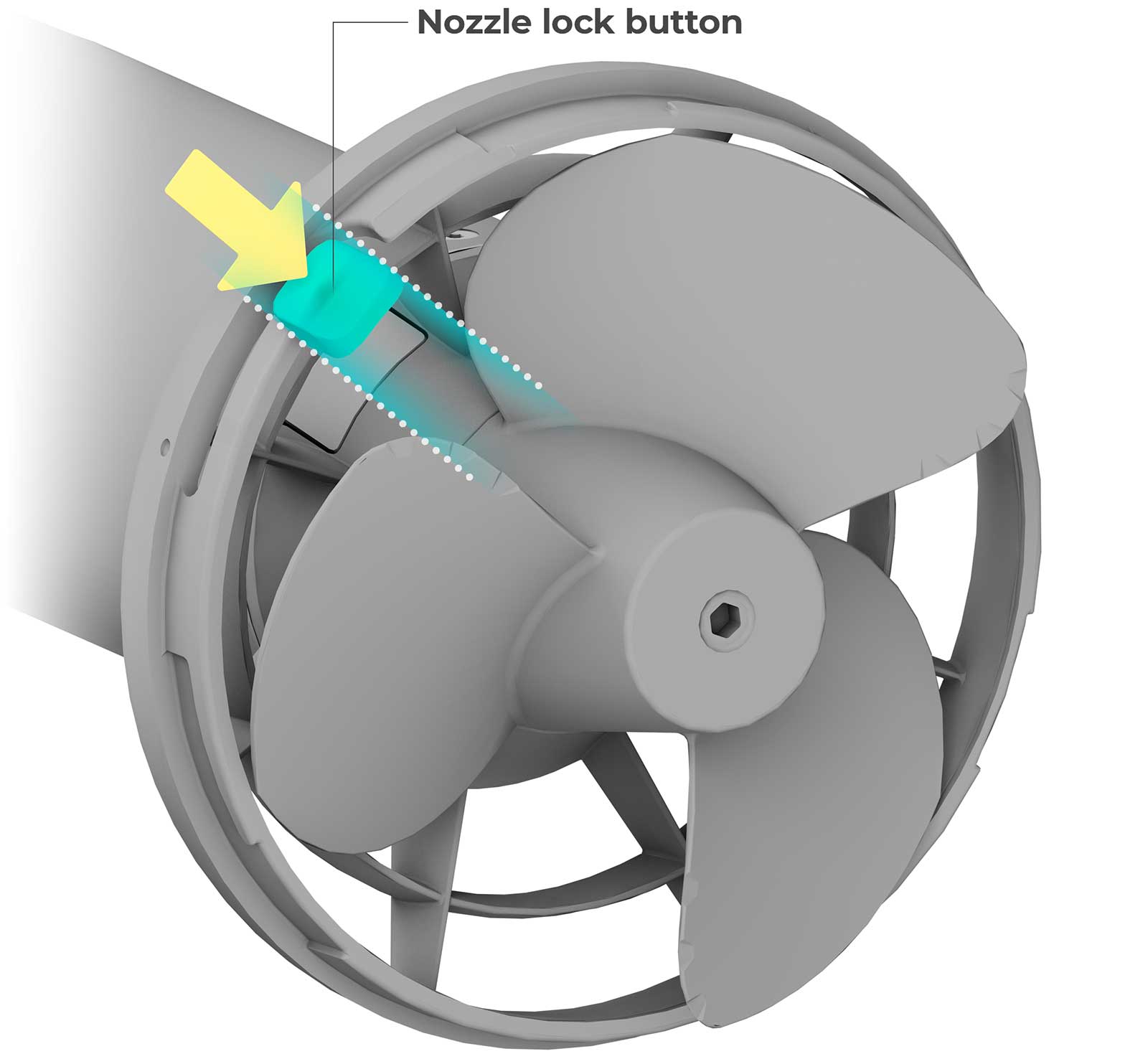

Rotate the impeller until the flexure button is between two of the blades, giving it adequate space to depress.

STEP 6

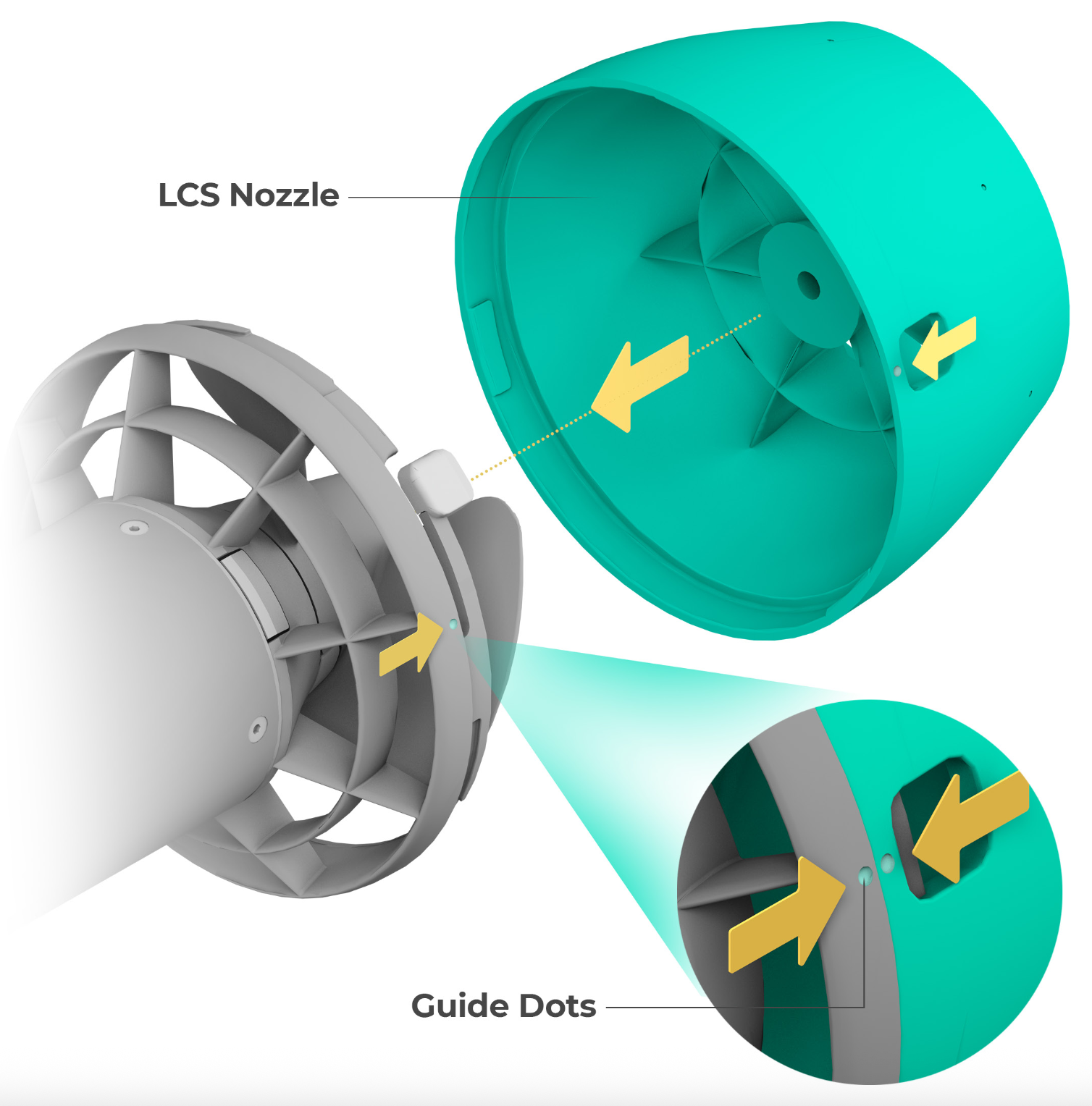

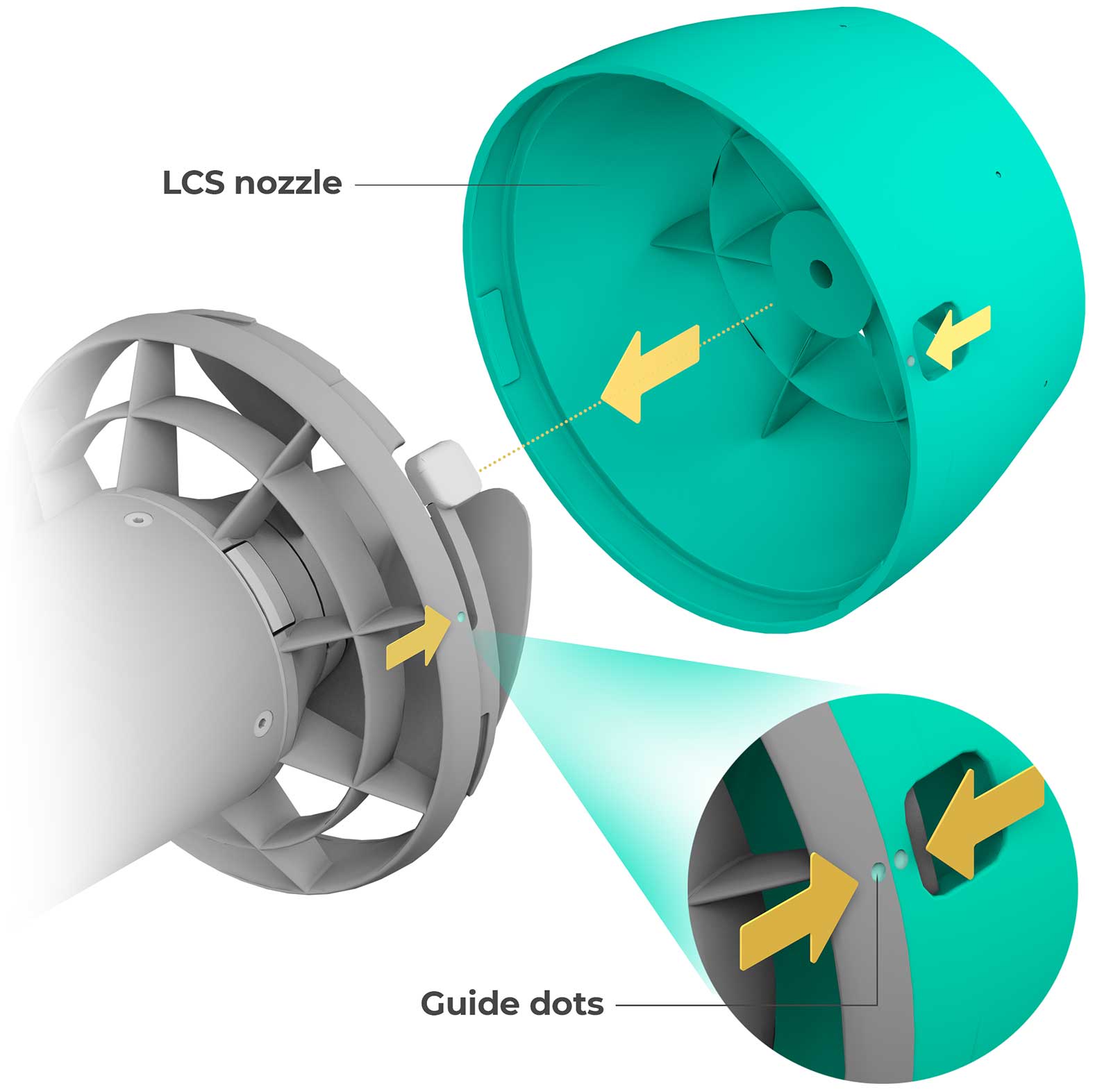

Attach the LCS nozzle by lining up the guide dots and pressing the LCS nozzle firmly into place.

STEP 7

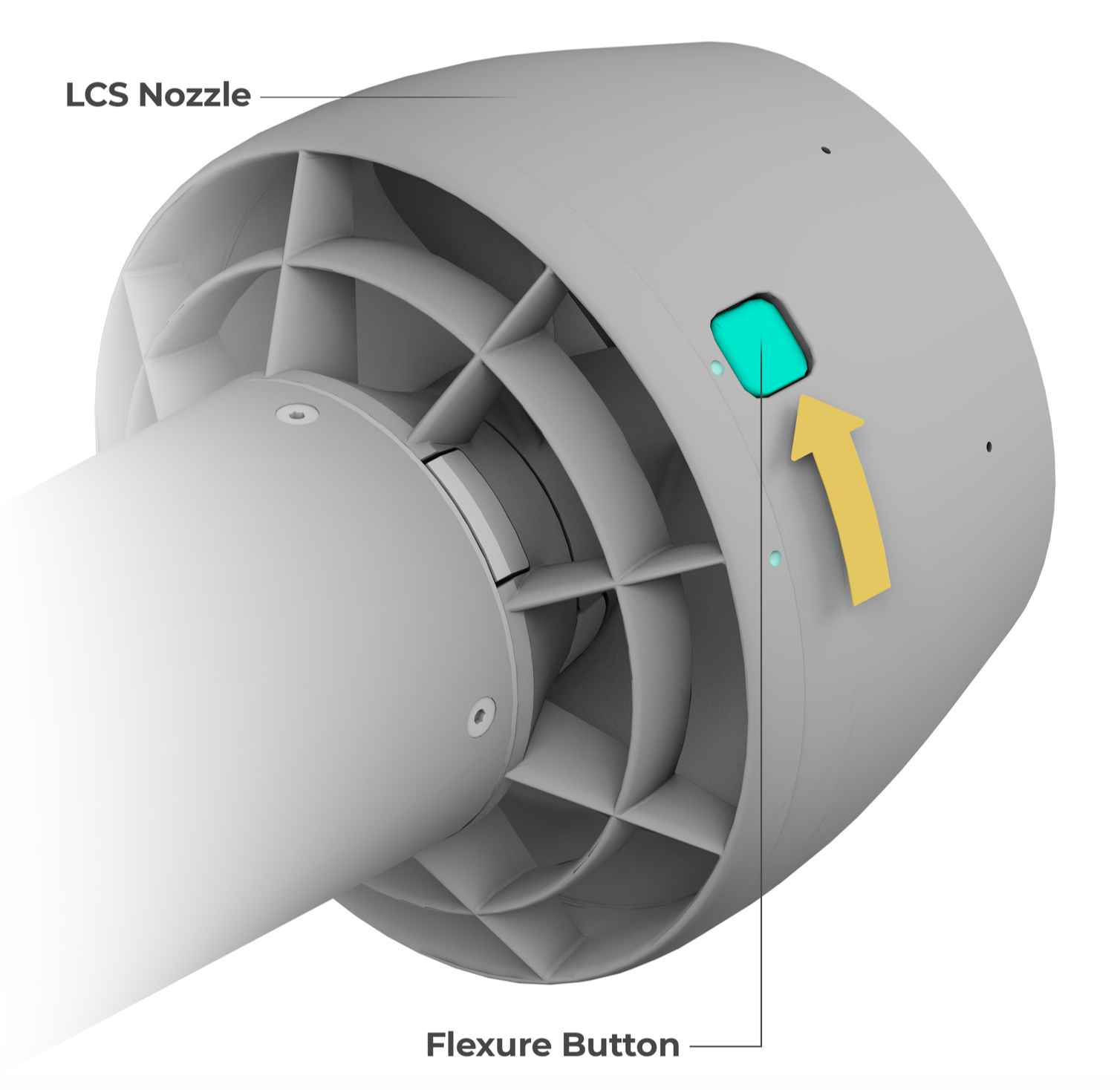

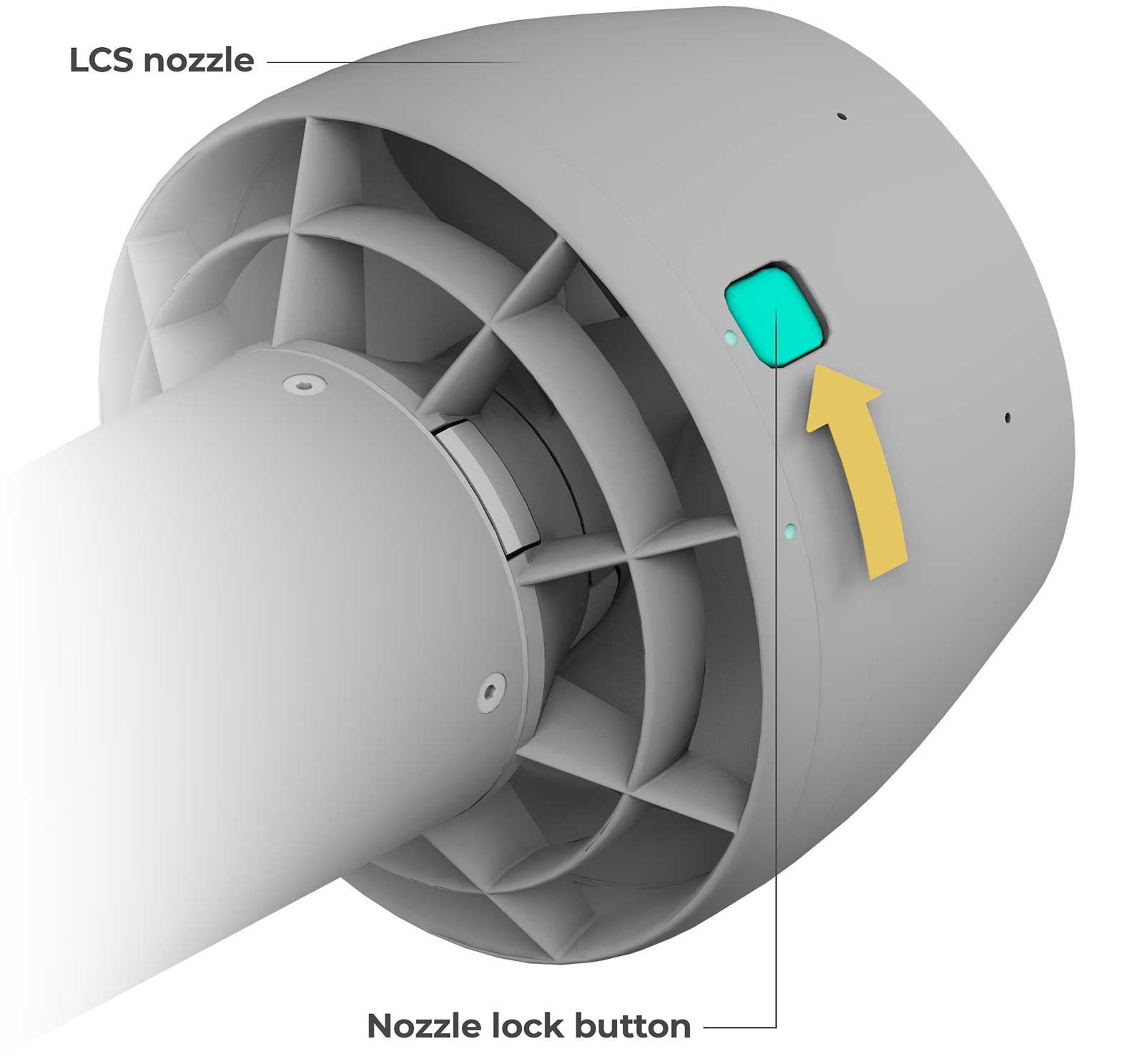

Slowly rotate the LCS Nozzle clockwise until the flexure button clicks through the guide hole on the nozzle. You should hear the flexure button click into place, creating a firm connection. Ensure that the flexure button has returned to its original position once connected.

And that’s it! Your Lift Connect System Jet is ready for use. Enjoy!
